Replacement Clamp Plates set for one pair V-150 Grippers Exchange for old set required. Contact Nupro for pricing.
Heavy use of the V150s can wear out the abrasive strip on the side plates. With this kit, easily replace the side plates on your grippers.

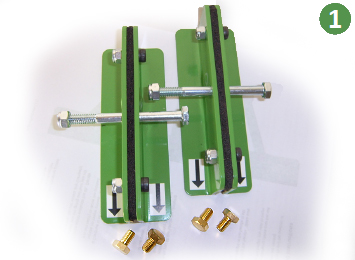

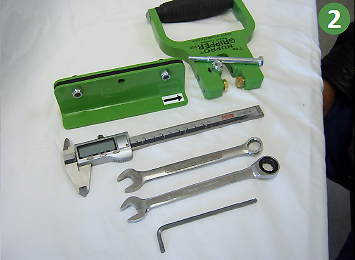

This kit includes all pictured components and illustrated instructions to adjust and assemble to factory specification.
|
|

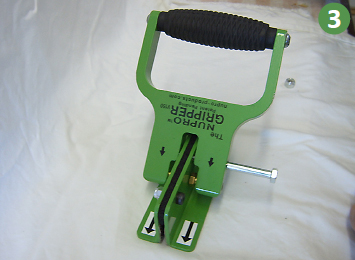

Disassemble worn gripper side plates from handlge by removing 5/16” pivot pin bolt from handle. |
Remove 5/16” old worn brass bolts from handle and install new brass bolts supplied with kit. |

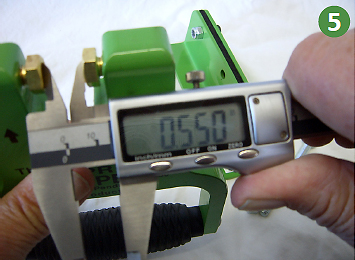

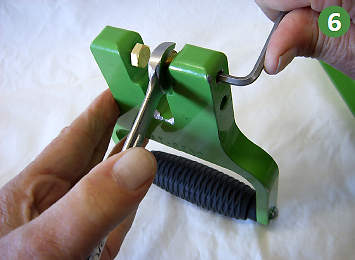

Adjust new bolts to .550 gap with caliper and lock set scres tightly using 1/2” wrench and 5/32” allen wrench together. Double check .550 gap and make sure set screws are tight. | Best to use an open ended wrench to keep the brass bolt from rotating while using the allen wrench to tighten. |

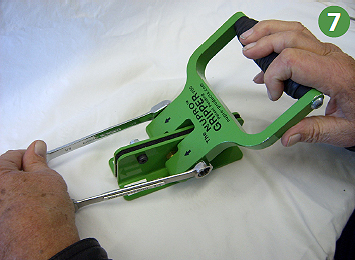

Slip new 5/16” bolt through handle and new side plates shown, moderately tighten the nylock nut using 2 each 1/2” wrenches as shown. Spread a thin laryer of white grease on cam and brass bolts. |
Mail your worn side plates and parts back to Be sure to include your contact information. |
